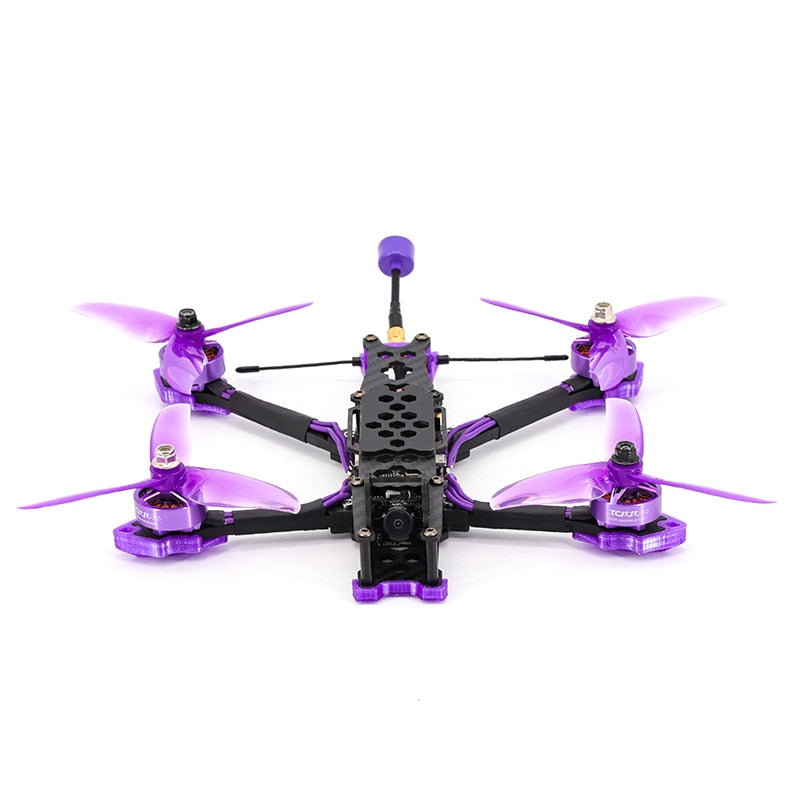

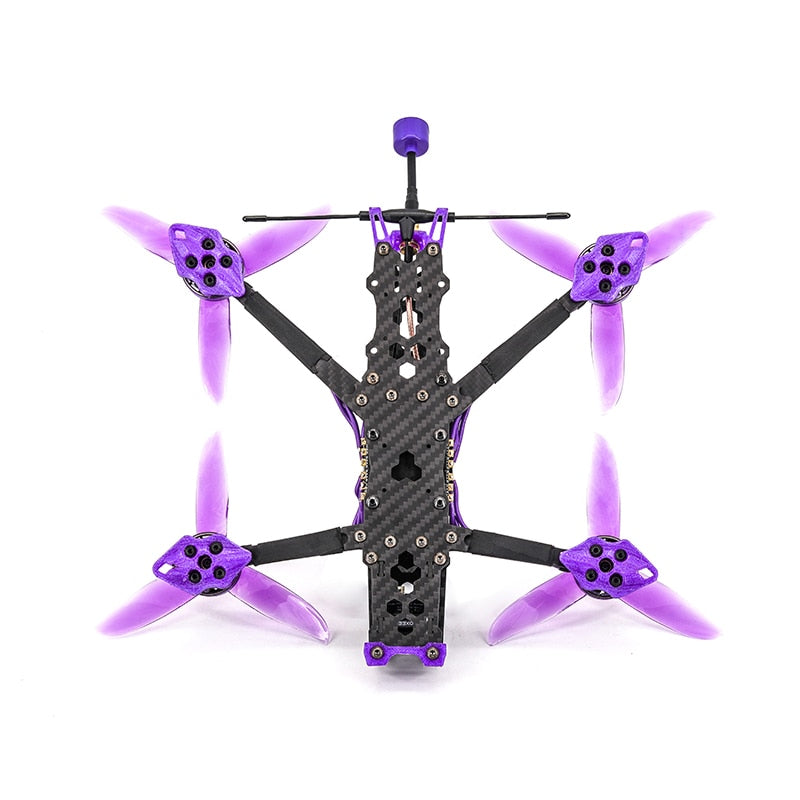

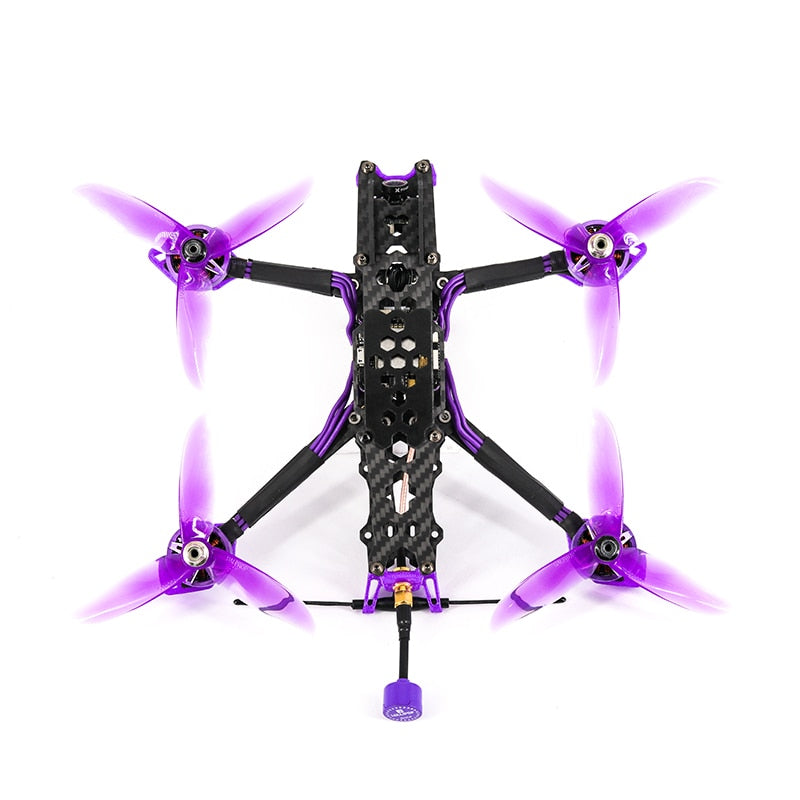

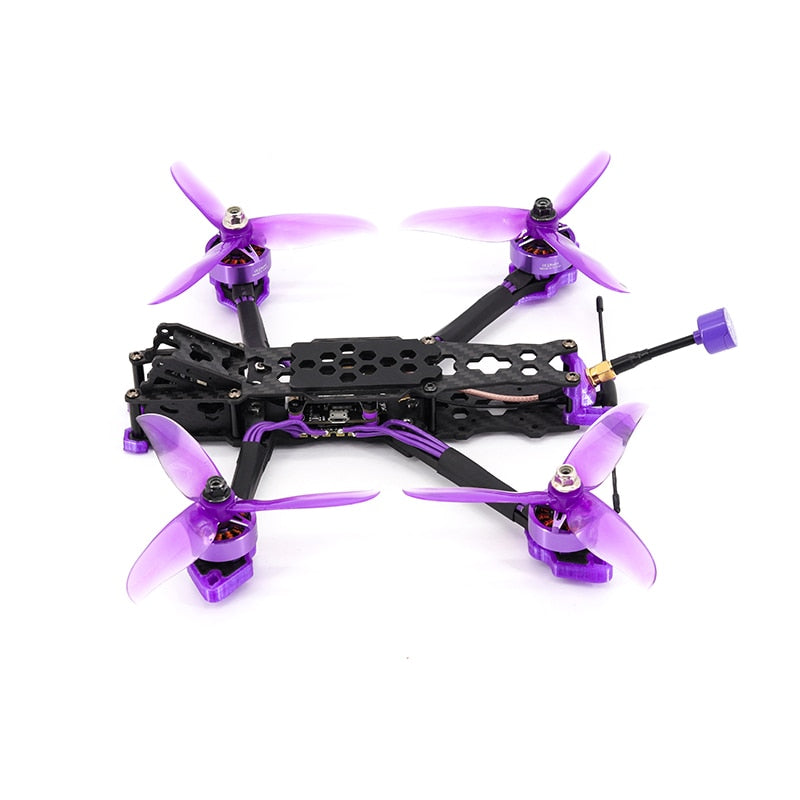

Avenger 225: Unassembled High-Performance Drone Kit
Introducing the Avenger 225 - the ultimate drone for those who demand power and precision! With its advanced features and high-quality components, this drone is perfect for both hobbyists and professionals.
Here are the product specifications:

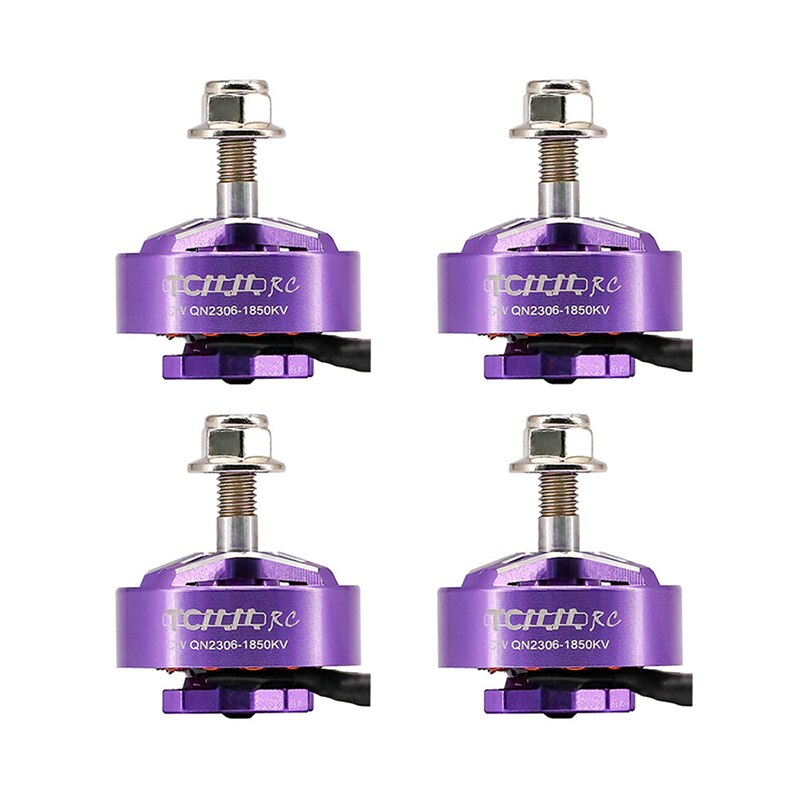

- Motor Model: 2306/1850 rpm/v (6S Version) 2306/2450 rpm/v (4S Version)
- ESC: 40A 4 in 1 Brushless Esc
- Flight Control: Omnibus F4 V3 Flight Controller
- Camera: Foxeer Mirco Pro
- Propeller: DALPROPT5046C Tri-blade Propeller
Please note that the receiver is not included.
The F4-40A esc boasts a continuous current of 40A and a peak current of 55A (6S), making it perfect for high-speed flights. It is also compatible with DSHOT600 and has a mounting hole of M330.5 * 30.5mm.
The F4129 flight control is designed to handle lithium batteries with 2-5S, and comes with a 10V 1A, 4.5V, 3.3V BEC. With its STM32F405 MCU, MPU6000 gyro, and AT7456E OSD, it delivers smooth and stable flight performance. The firmware, MATEKF405, ensures optimal operation, while the barometer and black box provide additional functionality.
Please note that the Avenger 225 is not assembled and is delivered in bulk. This allows you to customize and fine-tune the drone to your exact specifications, improving your flying experience and satisfaction.
So why wait? Order your Avenger 225 today and take your drone flying to the next level!
Motor: (Mounting hole: M3 16x16)
ESC: Compatible holes M2*20*20/M3*30.5*30.5
Camera: DJI HD camera 20mm
Flight control: Compatible holes M2*20*20/M3*30.5*30.5
Paddle: 5-5.1 inch paddle

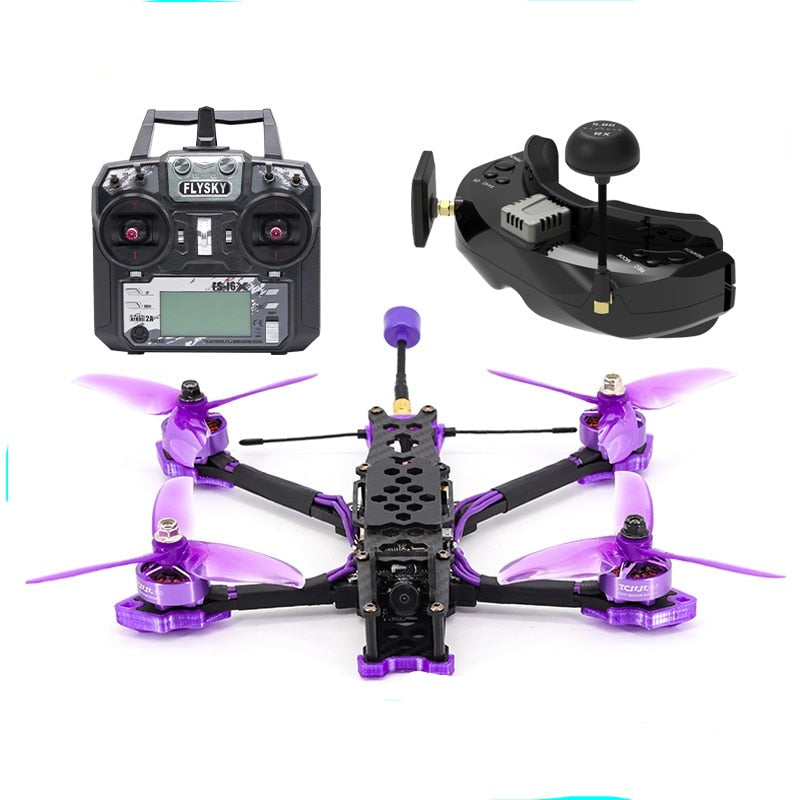

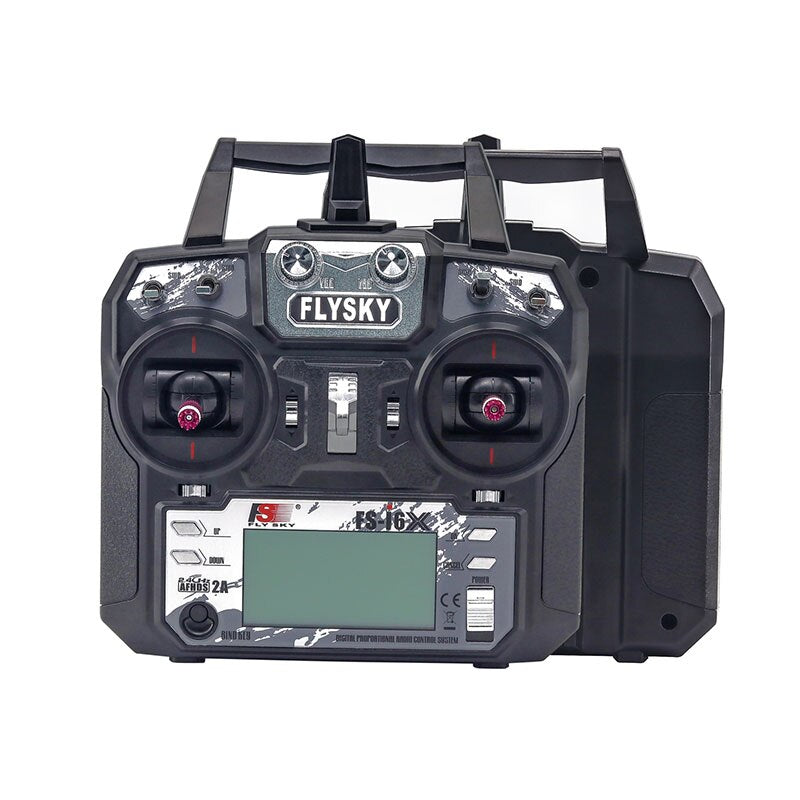

FlySky FS-i6X remote control：
Channel: 6-10 (Default 6, you could choose 7-10ch in setting)
Model Type: Fixed-Wing/Glider/Helicopter
RF Range: 2.408-2.475GHz
RF Power: < 20dBm
RF Channel: 135
2.4GHz System: AFHDS 2A / AFDHS
Modulation Type: GFSK
Stick Resolution 4096
Low Voltage Warning: < 4.2V
DSC port: PS/2 Port PPM
Antenna Length: 26mm (Dual Antenna)
Power: 6V DC 1.5AA*4
Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
On-line Update: Yes

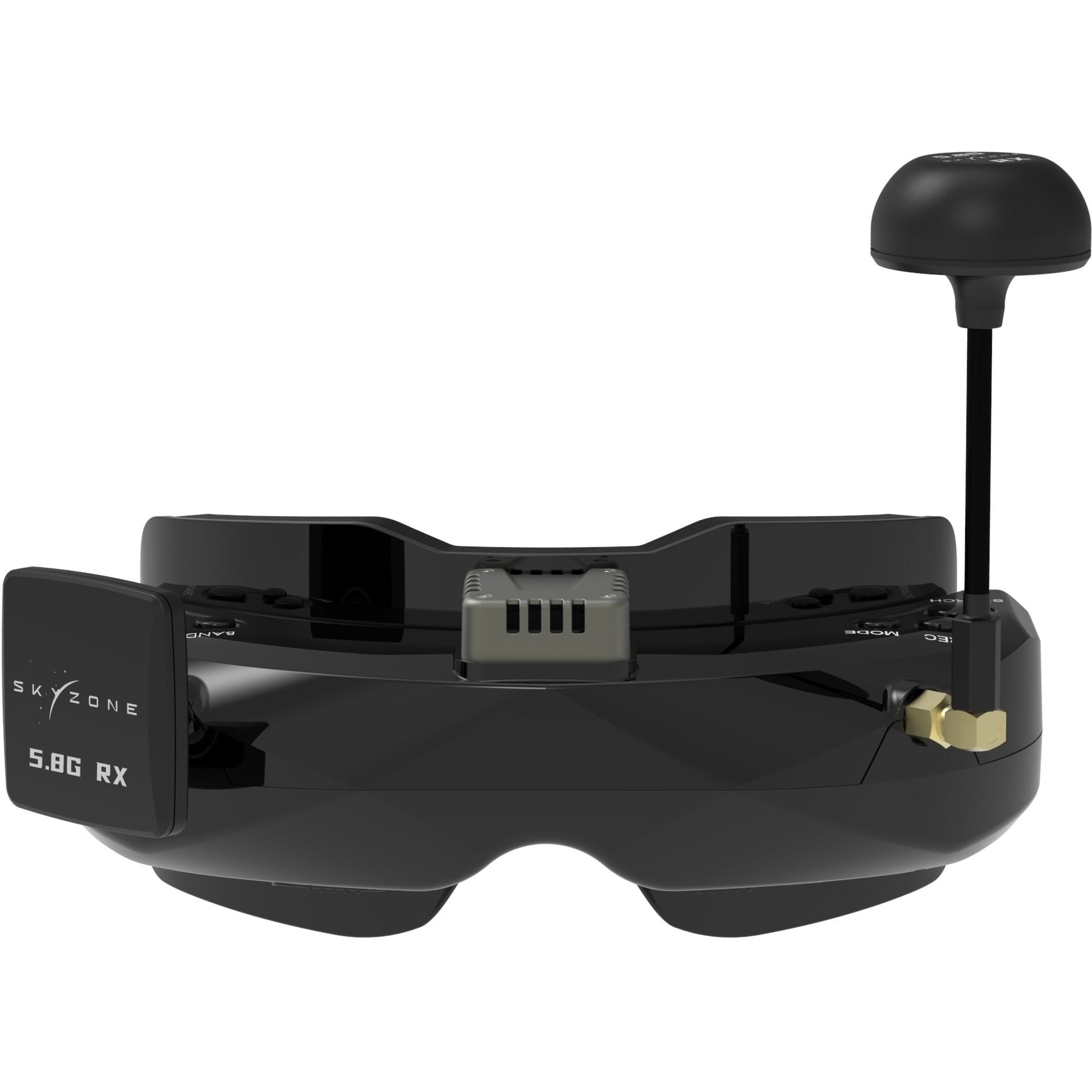

SKY02O 5.8Ghz 48CH
Model : SKY02O
Resolution : 640*400
Aspect Ratio : 16:10
Receiver : 5.8Ghz 48CH SteadyView Receiver Built-in
DVR: MJPEG 30FPS
Head Tracker : 3-axis Accelerometer, 3-axis gyroscop
Voltage Input Range : 2-6S LiPo
Language : Chinese/English
Dimenions : 167*70*79mm
Weight : 210g
