iFlight Nazgul5 HD 4S / 6S 5 Inch 240mm Freestyle FPV Racing Drone
In Stock
Sold out
Unavailable
PRODUCT DESCRIPTION
Nazgul5 HD is a 5" size BNF (Bind-and Fly) quadcopter with the DJI Digital FPV system on it. We sticked the lighter Caddx VISTA Polar on one of our new updated XL5 V5 FPV frames. Pre-tuned and setup, everything you need is just bind-and-fly! Loads of power and smooth flights guaranteed using our popular XING-E motors with long-lasting NSK bearings. Got a hard hit and snapped an arm? Don't worry, get some spares with your order and easily-swap out in the field. Wanna strap you for GoPro on that beast as well? Checkout our
collection of high quality TPU prints for your cam!
Specification:
Brand name: iFlight

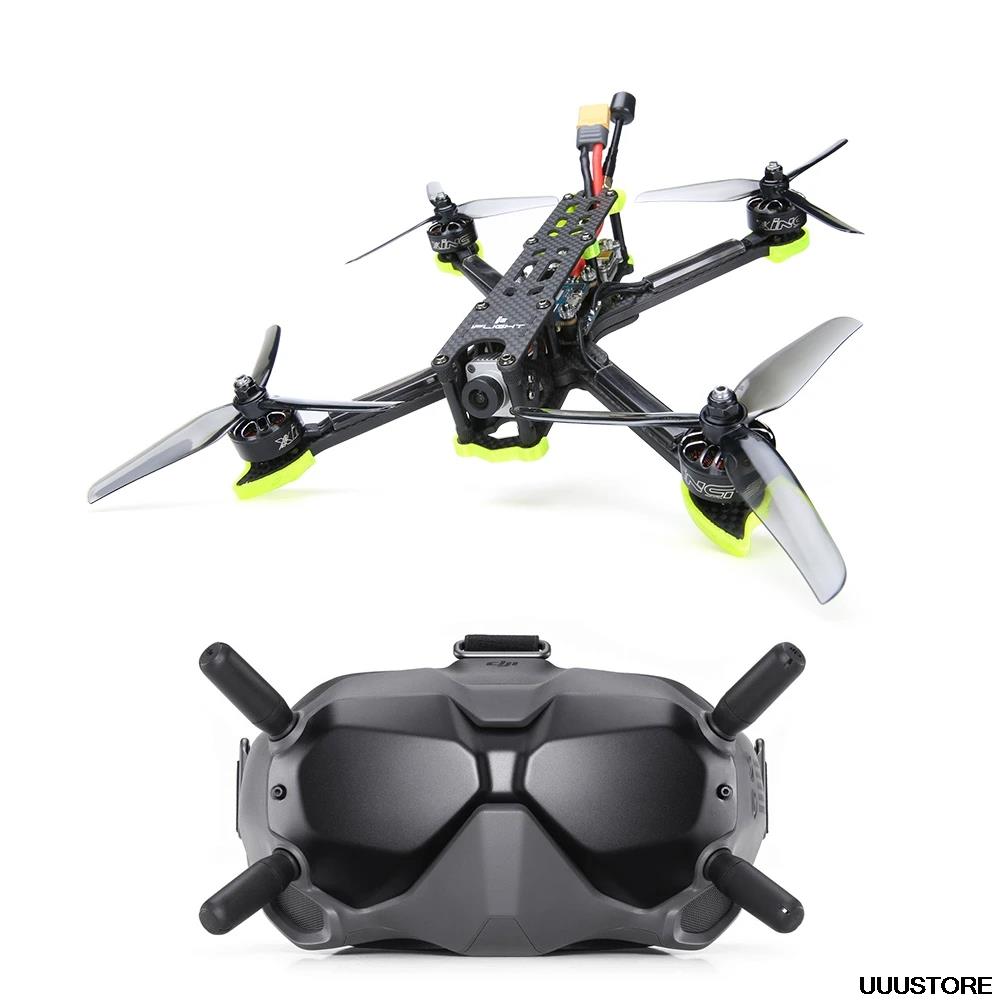

Item name: Nazgul5 HD 4S 5 Inch FPV Racing Drone (Caddx VISTA Polar)
SucceX-E F4 45A Flight Stack
XING-E 2207 FPV Motor ( 6S 1800KV / 4S 2750KV )

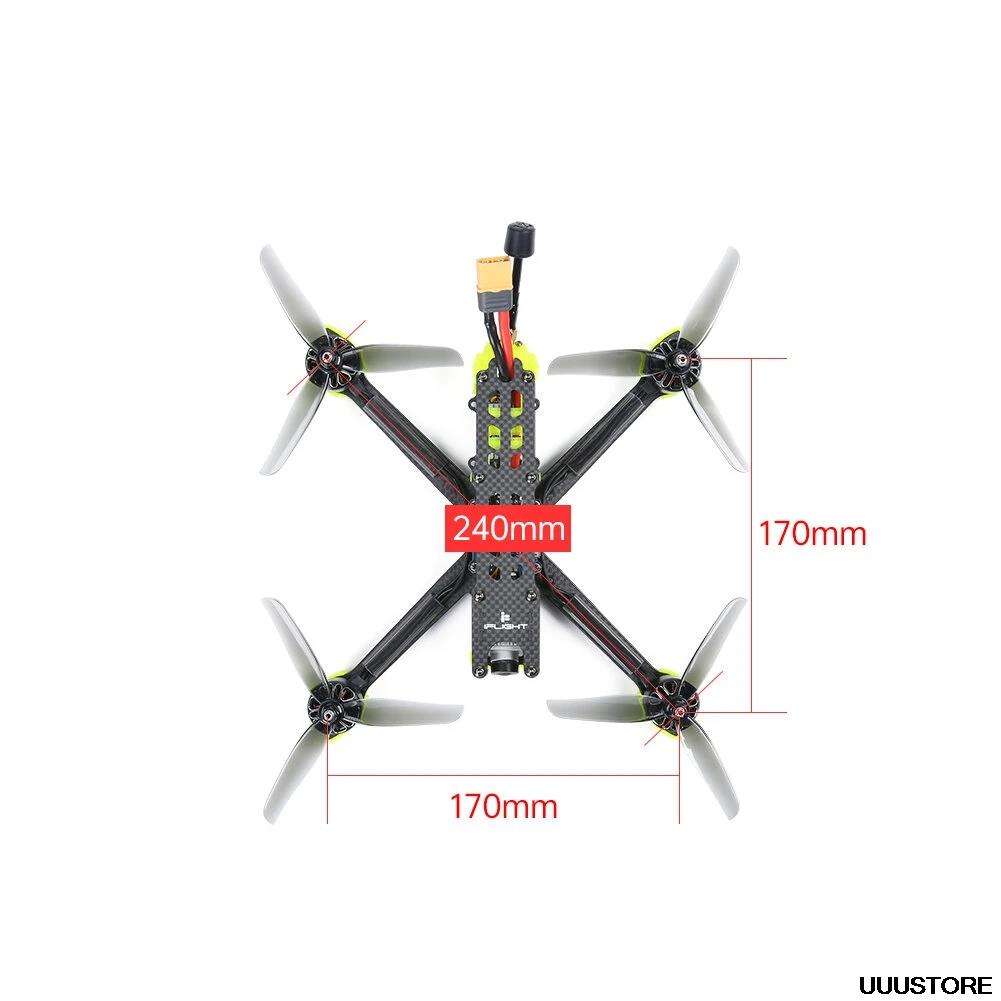

Wheelbase: 240mm
Body Size: 170*170mm
Propeller Size: 5 inch /5.1 inch
FC Mounting Hole: 30.5*30.5/20*20 mm
FPV Cam Spacing: 19mm

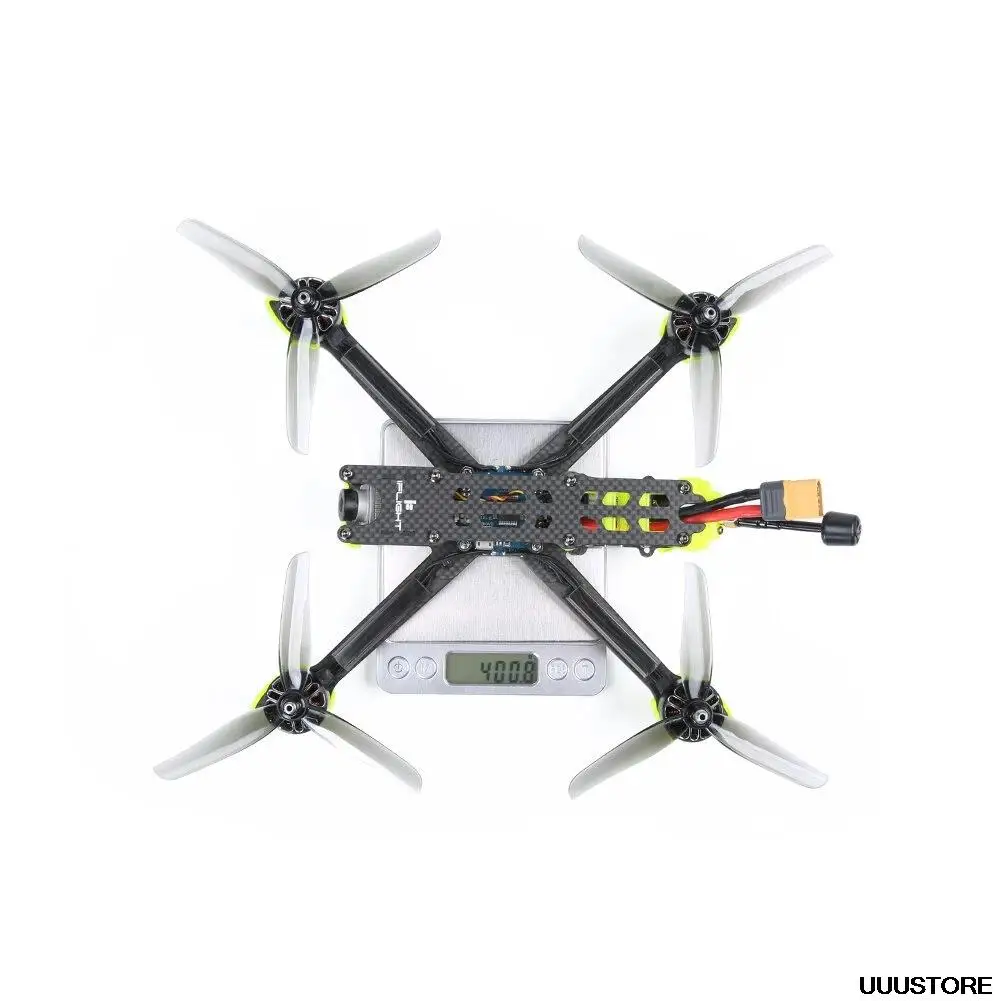

Weight: 400.8g (without battery)
DJI V2 Goggles Specification:
Weight: Approx. 420 g (headband and antennas included)
Dimensions: 202×126×110 mm (antennas included), 184×122×110 mm (antennas excluded)
Screen Size: 2-inch × 2
Screen Resolution (Single Screen): 1440 × 810
Screen Renew Rate: 144 Hz
Communication Frequency: 2.400 - 2.4835 GHz*; 5.725-5.850 GHz
Transmitter Power (EIRP): 2.400 - 2.4835 GHz
FCC/MIC: ≤28.5 dBm; CE: ≤20 dBm; SRRC: ≤20 dBm; MIC: ≤20 dBm
5.725-5.850 GHz
FCC/MIC: ≤31.5 dBm; CE: ≤14 dBm; SRRC: ≤19 dBm
Live View Mode: Low-Latency Mode (810p 120fps); High-Quality Mode (810p 60fps)
Video Format: MP4 (Video format: H.264)
Supported Video Play Format: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature: 32° to 104° F (0° to 40° C)
FOV: Adjustable from 30° to 54°. Adjustable image size from 50%-100%
Interpupillar Distance Range: 58 -70 mm
Supported Storage Card: microSD cards with storage capacities of up to 256GB.
DJI FPV Goggles Battery
Capacity: 1800 mAh
Voltage: 9 V (Max.)
Type: LiPo 2S
Charging Temperature: 0℃ to 45℃
Energy: 18 Wh
Max Charging Power: 10 W
Battery Life: Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)
Tips:
Avoid exposing the inside of the goggles to direct sunlight.
Package Included:
1 x XL5 V5 Frame
1 x Caddx Vista VTX
1 x Caddx VISTA Polar System
1 x DJI FPV Goggles V2
1 x SucceX-E F4 45A Flight Stack
4 x XING-E 2207 FPV Motor ( 4S / 6S Optional )
1 x Albatross LHCP RP-SMA 5.8g antenna
2sets x Nazgul 5 inch 3-blades (Set of 4 - Color may vary)
1 x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
1 x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)
